General Test & Measurement
LCR METER
Model 11050 HF LCR Meter
Features
- Test Parameter: L/C/R/Z/Y/DCR/Q/D/θ
- Test Frequency:
- 75kHZ~30MHz (11050-30M)
- 1kHz~10MHz (11050)
- 60Hz~5MHz (11050-5M)
- Test Level: 10mV ~ 5V
- Basic Accuracy: 0.1%
- 7ms fast speed measurement
- 3 output impedance modes
- Test signal monitoring function
- Compare & bin-sorting function
- Open/short zeroing & load correction function
- Detached measurement & display unit design
- Standard Handler, RS-232C, USB storage & external bias current control interface
- Optional Bias Current Source 0~5A/20A(100kHz~10MHz)
- Optional GPIB or LAN interface
Electrolytic Capacitor Analyser
Model 13100 Electrolytic Capacitor Analyzer
Features
- C meter / leakage current meter / foil WV tester 3 in 1
- Optional 10ch scan box
- Windows based software for statistical analysis
- Standard RS-232 I/F
Automatic Transformer Tester
Model 13350
Features
- Test frequency: 20Hz~200kHz
- Basic accuracy: 0.1%
- Optional fixtures for different applications: 20ch scan unit, 80ch scan box, and C.T. test fixture
- Standard RS-232, USB storage I/F, optional LAN & USB-H I/F
Model 11021/11021-L LCR Meter
Features
- Test frequency: 100, 120, 1kHz
- Basic accuracy: 0.1%
- Measurement time: 5ms
- Standard Handler I/F
Model 11300 Bias Current Test System
Features
- Frequency response: 20Hz~1MHz
- Output current: up to 300.0 A by 20.00 A modules
- Output current accuracy: 3%
- Windows based software for curve analysis
Model 11802/11803/11805/11890/11891 Programmable HF AC Tester
Features
- DC voltage: 1.0V~650V / 800V
- Charge current: 0.5mA~500mA
- Leakage current measurement: 0.001uA~20.00mA
- Standard RS-232 I/F, optional GPIB & Handler I/F
Model 11020 Capacitance Meter
Features
- Test frequency: 100, 120, 1kHz
- Basic accuracy: 0.1%
- Measurement time: 5ms
- Standard Handler I/F
Model 11300 Bias Current Test System
Features
- Frequency response: 20Hz~1MHz
- Output current: up to 300.0 A by 20.00 A modules
- Output current accuracy: 3%
- Windows based software for curve analysis
Model 11802/11803/11805/11890/11891 Programmable HF AC Tester
Features
- Test frequency: 20kHz~200kHz (11802/11890/11891) / 10kHz~200kHz (11805) / 20kHz~1MHz (11803)
- Maximum output power: 500VA (11802/11890/11891) / 800VA (11803) / 1kVA (11805)
- Optional voltage / current step-up modules
- Standard RS-485 I/F
Model 3312 Telecom Transformer Test System
Features
- Test frequency: 20Hz~1MHz
- Basic accuracy: 0.1%
- Test items for telecommunication transformer inspection
- Standard RS-232, Handler I/F, optional GPIB I/F only for LCR function
Model 11800/11801/11810 Ripple Current Tester
Features
- Test frequency: 100, 120, 400, 1kHz (11800) / 20kHz~100kHz (11801) / 20kHz~1MHz (11810)
- Ripple current & voltage: 10A, 90V & 30A, 30V (11800) / 10A, 15V (11801/11810)
- DC voltage: 0V~500V
- Standard RS-485 I/F
Display / Video Testers
Features
- Video Pattern Generator
- Color Analyzer
- ATS
- SHV 8K Test Solution
Battery Test solution
Features
- Battery Cell Test solution
- Cell Insulation Test
- Battery Pack/Module Test Solution
- Cell Voltage and Temperature Measurement
- Battery Pack Manufacture Test Solutions
- Battery Pack After Service Test System
Electric Vehicle test solution
Features
- ATS
- Battery Test System
- DC Power Supply
- Electronic Load
- Motor Test Solution – Safety Test
- Automatic Transformer Test System / Automatic Component Analyzer

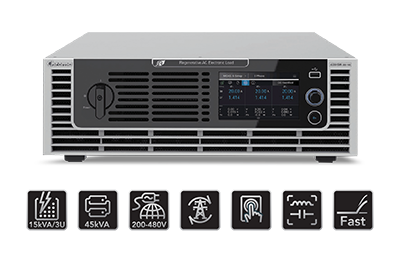

Regenerative AC Electronic Load
Model 63800R Series
Features
- Rated power: 9kVA, 12kVA, ISKVA
- Voltage range: 30Vrms-350Vrms
- Rated current: 67Arms, 95Arms, 105Arms
- Frequency range: 30Hz-100Hz
- Crest factor range: 1.414-3.000
- Power factor range: 0.100 -1.000 (lead/lag)

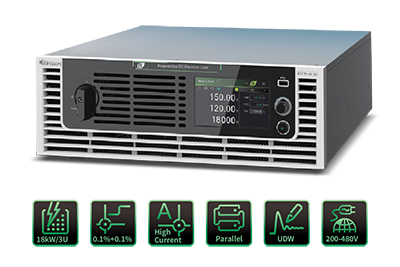

Regenerative DC Electronic Load
Model 63700 Series
Features
- Rated power: 6kW, 12kW, 18kw
- Voltage range: 100V*, 600V, 1,200V, 1,800V
- Current range: Up to 540A*
- Operating modes: Constant Current, Constant Resistance, Constant Voltage, and Constant Power
- Master/Slave parallel control, up to 10 units in parallel*
